1987 Heesen Yachts 130' _{(39.62 m)}

SPECIAL FEATURES

1. Recently completed her 35-year ABS special survey

2. Completely updated interior with modern aesthetics and bright colors

3. Trans-Atlantic capable; recent crossings completed

4. CAT C32 Acert engines new in 2012; full rebuild in 2020

5. 2 x 65kw generators with top-end service in 2021

6. Captain’s cabin on the bridge deck and fantastic crew accommodations

7. Full navigation equipment upgrade on the bridge deck

8. Accommodations for 12 guests in 5 beautifully appointed staterooms

9. Semi-displacement hull allows for a cruising speed of 12 knots and a max speed of 20 knots

CONSTRUCTION

Aluminum hull and superstructure.

Teak decks.

DIMENSIONS

General

• Length Overall: 130 feet
• Length at Waterline: 101 feet, 9 inches
• Beam: 25 feet
• Draft Minimum: 6 feet, 11 inches
• Draft Maximum: 7 feet, 7 inches
• Gross Tonnage: 236 gross

Capacities

• Fuel Capacity: 11,597 US Gallons (43,900 liters) / 7 fuel tanks
• Water Capacity: 2,000 US Gallons (7,570 liters) / 3 water tanks
• Gray Water: 1,135 US Gallons (4,296 liters)
• Lube Oil: 211 US Gallons (801 liters)

Speeds

• Maximum: 20 knots speed, 200 Gallons/hr, 2300 RPM, 100% Load
• Cruising: 12 knots speed, 74 Gallons/hr, 1600 RPM, 38% Load
• Economical: 10 knots speed, 25 Gallons/hr, 1150 RPM, 20-25% Load

ACCOMMODATION

LIONSHARE accommodates 12 guests in 5 staterooms.

The full beam, main deck forward master suite features a King sized bed, vaulted ceilings, a built-in desk, and his and hers ensuites, with a Jacuzzi tub for her and a large, glass shower for him.

Located on the lower deck amidship, an illuminated modern staircase takes guests down to the lower foyer where there are three guest cabins, consisting of:

• (1) x VIP full beam stateroom with King sized bed and ensuite bathroom featuring a bathtub and full-length glass shower, large lounge which may sleep an additional guest or child if desired, and built-in desk space.

• (1) x Twin Stateroom with Pullman berth and ensuite bathroom with full-length glass shower.

• (1) x Queen Stateroom with ensuite bathroom and full-length glass shower.

The main salon aft staircase provides access to the 4th stateroom, located on the lower deck:

• (1) x Double Bed stateroom with an additional twin bed and Pullman with ensuite bathroom and full-length glass shower.

LIONSHARE sleeps 7 crew in 4 crew cabins, including a dedicated Captains Cabin.

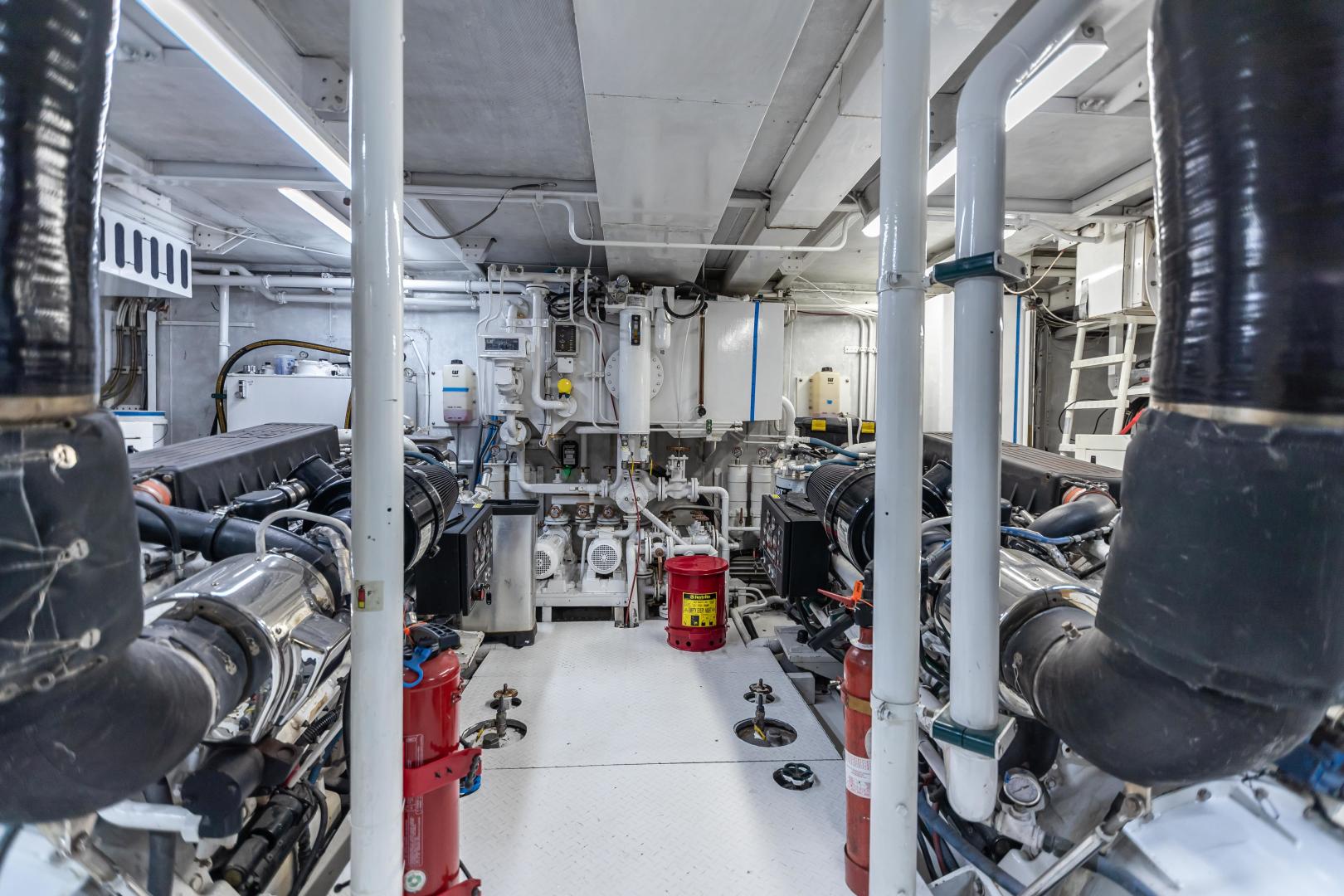

MACHINERY

Main Engines

• Engine Type: (2) CAT C32 Acert, 1800 hp (installed new in 2012)
• Hours (October 2022): Port: 1,707 since rebuild (Rebuilt at 10,847 hours) / Starboard:1,709 since rebuild (Rebuilt at 10,835)
• Engines were rebuilt in June 2020 by Pantropic Power
• Gearboxes: ZF3055
• Propellers: (2) x 4-blade props

Generators & Electricity

• Generators: (2) x 65 kW Zenoro
• Generator Engine Blocks: (2) x John Deere, both new in 2017
• Hours (as of October 2022): Port: 10,449 / Starboard: 11,082
• Generator top-end service in September 2021 by NPS Diesel.
• Generator Fuel Consumption: 30 US Gallons/day/per generator/at anchor
• Shore Power: (2) x ASEA Model AC30-1
• In:180-520 VAC, 50-60 Hz / Out: 208/120 VAC
• 3-phase 60 Hz
• Batteries: Main engine starting: (2) Catapillar (replaced August 2020)
• Generator starting: (2) x 12V Odyssey (new August 2020)
• Electronics: Bridge replaced in December 2019

Air-Conditioning

• Type: Frigomar; 21 tons, 3-chiller unit
• 210,000 BTU's/hr
• Installed new in May 2022

Other Machinery

• Watermakers: (2) x Custom watermakers; 120 US Gallons/hr; 2,800 US Gallons/day (combined)
• Stabilizers: Naiad, 12 square foot fins, underway only
• Bow Thruster: Hydromar, hydraulic
• Steering System: Sperry Marine, hydraulic
• Backup Emergency Steering: Cable system, located in the lazzarete
• Fuel Filtration: Westfalia
• (2) x Racor filters on each engine
• (1) x Racor filter on each generator
• Sewage System: Headhunter Type 2; ABS approved August 2017
• Freshwater System: (2) x Headhunter Mach 5

COMMUNICATION, NAVIGATION & ENTERTAINMENT SYSTEMS

Communication Systems

• Loudhailer: Furuno LH5000
• Cellular: Pepwave Max Router
• VHF: (2) x 25W VHF

Navigation Systems

• AIS: Class A AIS Transponder
• Depth Sounder: Furuno SS260 50/200 Hz / Aimar DST810 NMEA200 Smart Multisen
• Automatic Pilot: Raytheon Anschultz Pitostar NX
• GMDSS: Navtex NX700P with printer
• Furuno Inmarsat-C FELCOM18
• Ship's screens: 4x touchscreen displays
• Chartplotter: Navnet TZ Touch2 BlackBox
• Satcompass: SC70
• Wind: Furuno F170
• Rudder Indicator: Raytheon
• Ship's software: Timezero & TRANSAS
• Ship's Computer: Nobeltec with Timezero
• BNWAS: Furuno BR-500 (bridge, crew mess, captain's cabin)

Entertainment Systems

• (1) x 65" LG Smart TV (Main Salon)
• (1) x 55" LG Smart TV (Sky Lounge)
• (3) x 37" LG (Master, Port Aft Cabin, Fwd VIP Cabin)
• (1) x 32" Samsung (Aft Guest Cabin)
• (1) x 23" LG (Starboard Guest Cabin)
• (1) x JVC (Crew Mess)
• Apple TV (Main Salon, Sky Lounge, Guest Cabins)
• PlayStation 4
• Plex Media Server

GALLEY & LAUNDRY EQUIPMENT

Main Galley Equipment

• Cooking Equipment: (1) x Miele 24" Combo-Steam Oven (new 2022)
• (1) x Miele 24" Speed Oven- Vitroline (new 2022)
• (2) x Garland 2-burner Induction Cooktop
• (1) x Induction griddle

• Refrigeration & Freezer: (3) x TRUE Refrigerator
• (1) x TRUE Freezer (Lazz)
• (1) x TRUE Fridge (Lazz)
• Wine Fridge: (1) x wine fridge (bridge deck aft)
• Beverage Fridge: (1) x fridge (bridge deck aft)
• Ice Maker: (1) x Scotsman, commercial (Lazz)

Crew Mess Galley

• Frigidaire Side-by-Side Refrigerator with Freezer Drawer; built-in ice/water dispenser
• Lambar dishwasher
• Black & Decker microwave

Laundry Equipment

• (2) x Miele wash machines
• (2) x Miele dryers
• 1 set of above washers and dryers new in 2021

TENDERS & TOYS

• 32' Intrepid with cabin; (2) x 350hp Mercury engines
• (1) x 2022 SeaDoo Spark Trix 3UP
• (1) x 2020 SeaDoo Spark Trix 3UP
• (3) x SeaBobs
• (1) x Bauer Dive Compressor
• Nautiboy platform
• Outdoor cinema with screen
• Flyboard, jet skis, wakeboard
• Various snorkel and dive gear
• Various inflatables

DECK EQUIPMENT

• Anchor Windlass: (2) x Lofrans, horizontal gearbox
• Anchors: (2) x Pool HCG Lieden; 350 pounds each
• Anchor Chains: (2) x 5/8" stud link galvanized chain; 500 feet each
• Aft Warping Capstans: (1) x Lofrans; (1) x Quick
• Bow Davit: UMT; 1200 pounds
• Passerelle: Besenzoni
• Deck shower: Yes, swim platform

SAFETY & FIRE EQUIPMENT

Safety Equipment

• Ship's safe: Master Stateroom and Captain's Cabin
• Life Rafts: (2) x Duarry 16-capacity
• (2) x KHA 8-capacity
• Life Rings: (6); (4) on the bridge, (2) on the main deck
• EPIRB: (1) x ACR

Fire-Fighting Equipment

• Fire System: Fixed CO2 for engine room only
• Fire Hydrants: Bridge deck and 2 on the main deck
• Fire pumps: FLOMAX 5 and FLOMAX8

2022 REFIT

Refit/Maintenance Details

• New carpets throughout
• New wooden flooring
• New furniture
• Altering the color scheme and moving away from the browns
• Replacing deck headliners in the interior
• Bridge equipment upgrades
• New Smart TVs throughout the vessel
• New blinds
• New mirrors
• New A/C installation throughout the vessel

EXCLUSIONS

• The name LIONSHARE does not convey.
• All the owner's and crew's personal items.
• A detailed list of exclusions will be provided at the time of sale, upon request.

MECHANICAL DISCLAIMER

Engine and generator hours are as of the date of the original listing and are a representation of what the listing broker is told by the owner and/or actual reading of the engine hour meters. The broker cannot guarantee the true hours. It is the responsibility of the purchaser and/or his agent to verify engine hours, warranties implied or otherwise and major overhauls as well as all other representations noted on the listing brochure.

DISCLAIMER

The company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change or withdrawal without notice.
